H2Maker FC
H2Maker FC: Smart Monitoring and Supervision for H2Planet Fuel Cells
H2Maker FC is the monitoring software designed for real-time control of H2Planet hydrogen fuel cells. Connected via RS232, it offers an intuitive and comprehensive interface with an animated process diagram and graphical tools to instantly track stack performance.
- Real-Time Monitoring: Monitor voltage, current, power, and temperatures with circular gauges and Live Trends graphs.
- Analysis and Reporting: Record session data, export to CSV, and generate automatic reports in Excel complete with statistical analyses.
- Integrated Simulation: Experiment and train staff even without connected hardware, thanks to the integrated simulation mode.
- Preconfigured Plug & Play: Datasheet parameters and compatible cylinders are already set up for the entire H2Planet range (H Series from 100 W to 5 kW and T Series from 1 to 10 kW).
Simplify the management, training, and analysis of your fuel cell on Windows and macOS.
Live Trends Charts and Continuous Performance Analysis
Analyze your stack's performance in real time with the advanced graphics section of H2Maker FC.
- Continuous Trend: Track and visually overlay the fuel cell’s key operating parameters throughout the entire session:
- Power generated
- Stack voltage and current
- Operating temperatures
- Intuitive Interface: Continuously updated trend graphs to instantly identify load variations, peaks, and stack efficiency.
- Export and View: Monitor dynamic response curves with the ability to record and save session trends for later analysis.
Transform your fuel cell’s behavior into clear and immediate trend curves.
Intelligent Monitoring and Real-Time Diagnostics
Taking full control of your hydrogen stack has never been easier
H2Maker FC provides a clear, comprehensive, and immediate overview of the fuel cell’s performance directly during operation.

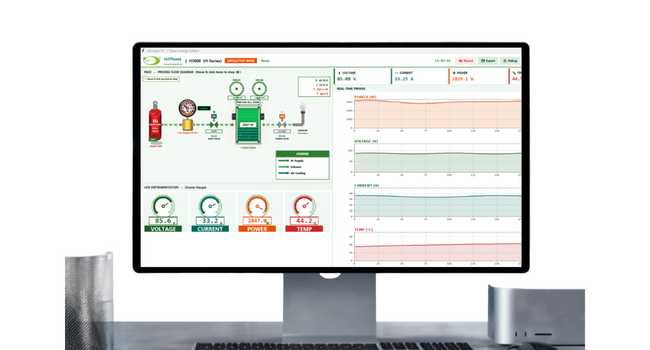

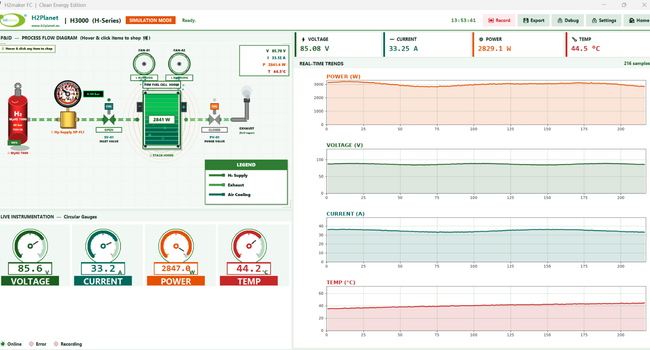

- Advanced Visual Interface: Monitors the system using circular gauges, instantaneous numerical values, and an animated process diagram that displays the operating status in real time.
- Stack Parameter Monitoring: Continuously tracks key operating variables:
- Voltage, current, and power output
- Stack operating temperaturesOverall system status
- Cylinder Integration: Directly displays information and recommendations regarding cylinders that are recommended and compatible with the model in use. All critical parameters of your fuel cell are visible and under control on a single screen.
Automatic Recording, Excel Reports, and Data Analysis
Simplify tracking and reporting for your fuel cell.
With H2Maker FC, every work session is accurately recorded and converted into data ready for analysis.
- Recording and Storage: Automatically saves and captures the entire operational session to a file for later processing.

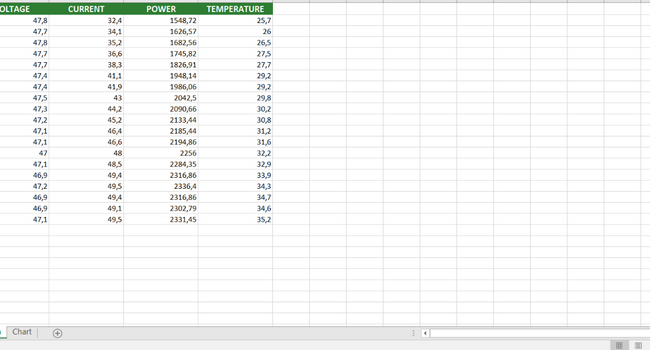

- Universal Export (CSV): Easily export all readings in CSV format, perfect for integration and manipulation in any spreadsheet software.

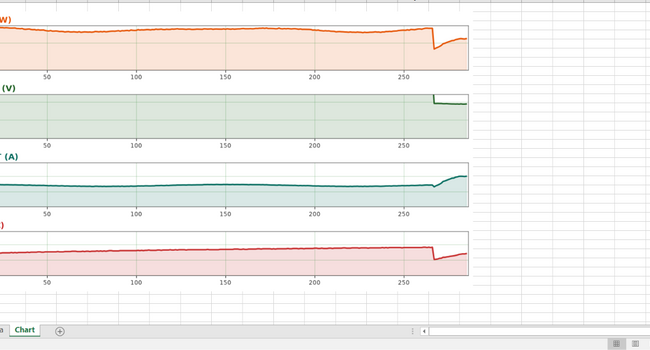

- Excel Reports and Statistics: Automatically generates comprehensive reports in Excel, complete with key session statistics (minimums, maximums, averages, and trends).
- Complete Historical Data: In-depth, retrospective analysis of all key values: voltage, current, power output, and operating temperatures.
From raw data to statistical reports in just a few clicks, to document every performance metric of your fuel cell
Maximum Compatibility with the H2Planet Line: H Series and T Series
A single software solution to manage, protect, and optimize the entire H2Planet fuel cell fleet.
H2Maker FC is custom-designed to integrate seamlessly with the H2Planet line of hydrogen fuel cells, offering preconfigured profiles based on the official datasheets for each model, with clear instructions on compatible cylinders.
- H Series Fuel Cells (100 W to 5 kW): Fully compatible with air-cooled systems, ideal for portable, educational, and light OEM integration applications.
- T Series Fuel Cells (1 kW to 10 kW): Native monitoring dedicated to the high-power professional line for stationary and backup power applications.
- Plug & Play via RS232: Simply select the model to immediately load the factory operating settings and thresholds, without any manual configuration.
What You Get: Hardware Kit and Software Delivery
Everything you need to connect and start monitoring your H2Planet fuel cell

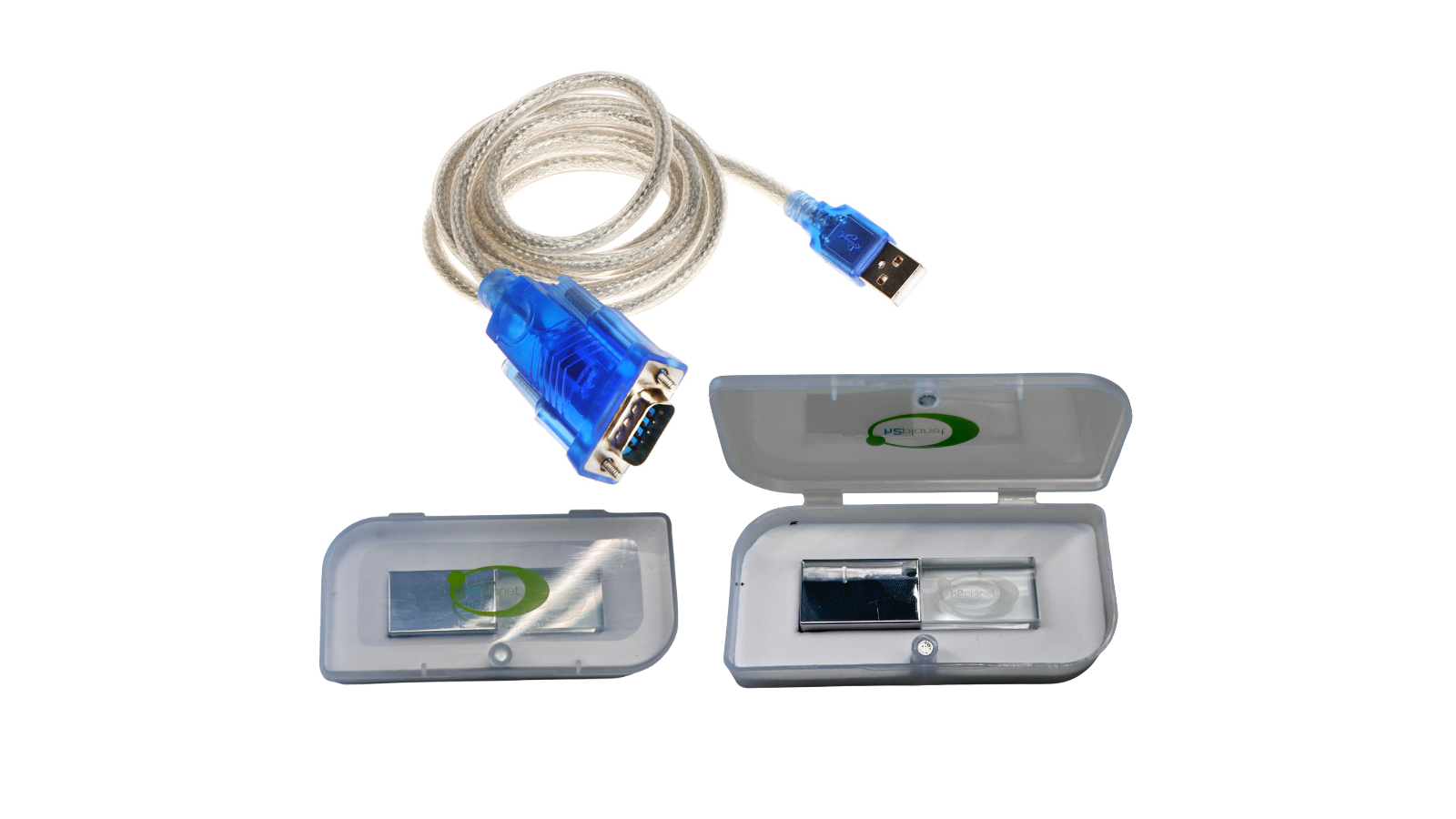

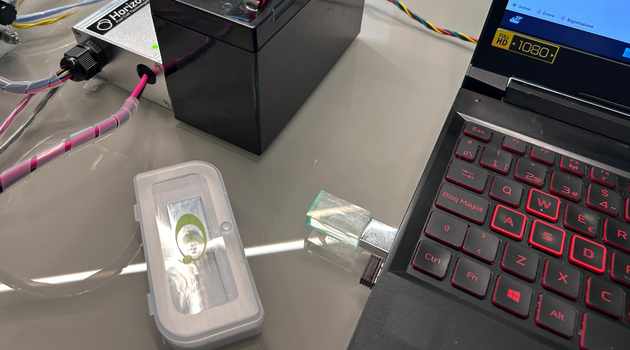

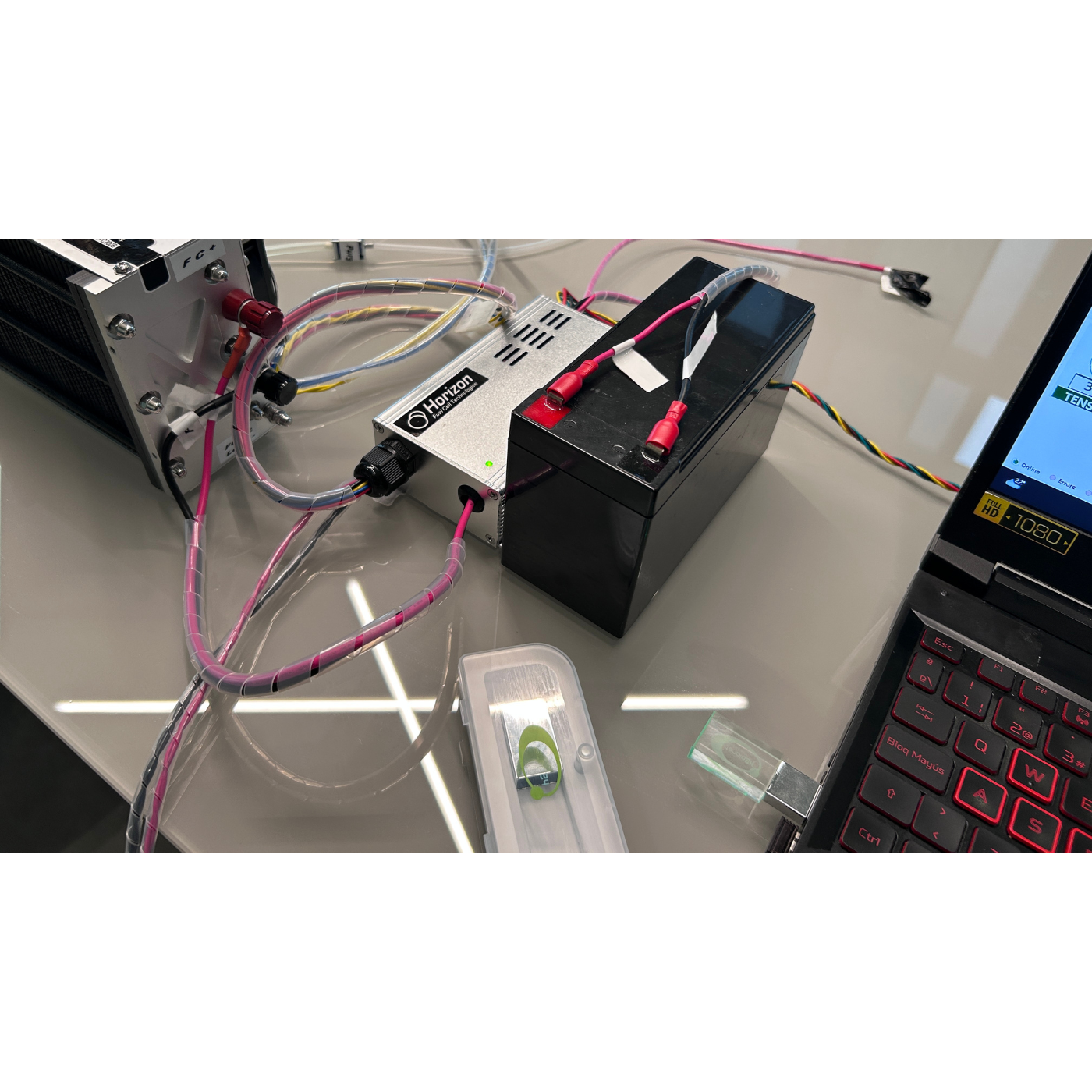

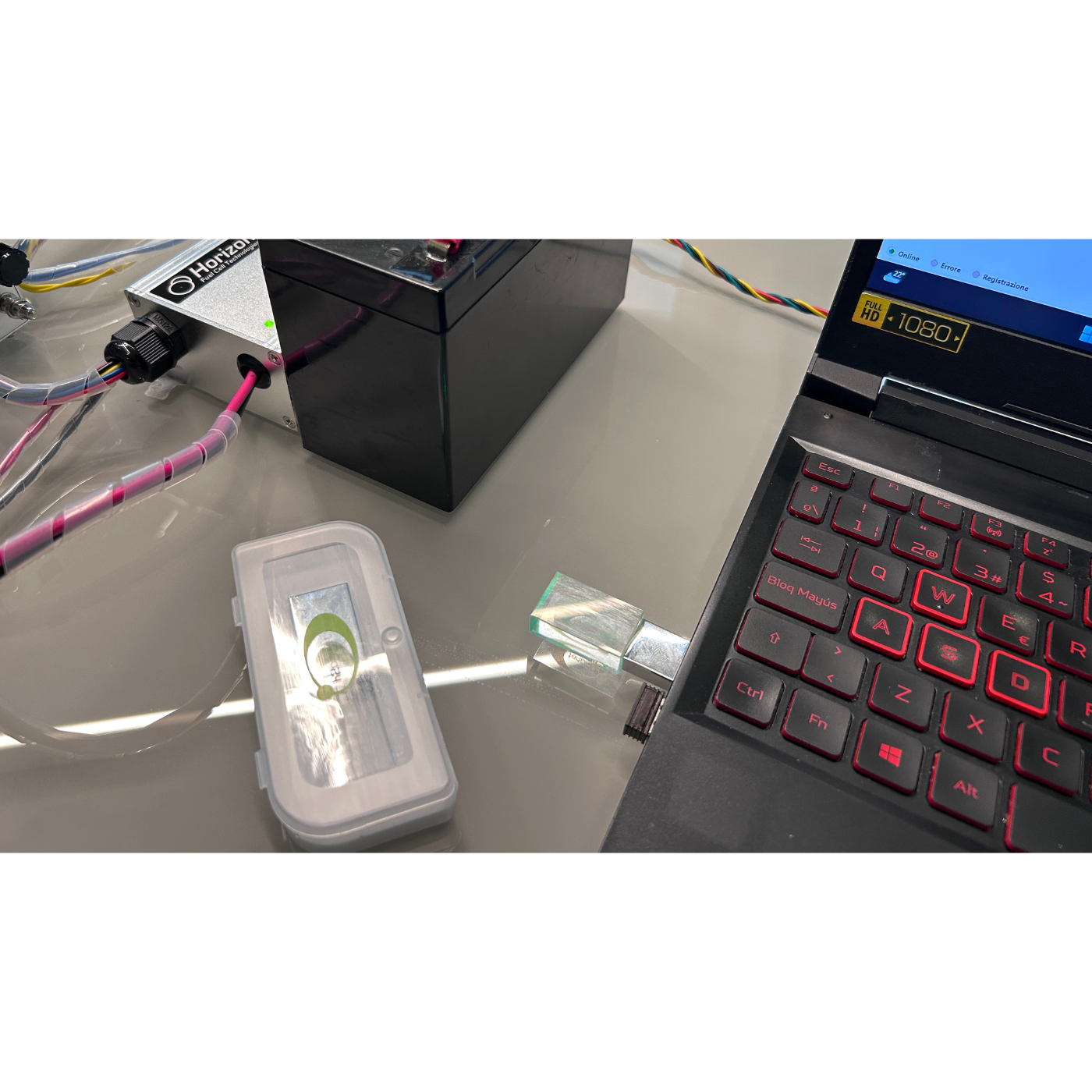

The H2Maker FC software is provided on a USB flash drive, ready to use, complete with the connection kit specific to your fuel cell:
- H2000, H3000, H5000 (and T Series): Supplied with a direct RS232 connection cable.
- H100, H200, H300, H500, and H1000: The FC PLUS controller must be purchased separately.
