MyH2® SLIM

Hydrogen stored simple

The H2planet patent pending slim storage!
2 NEW VERSIONS 80 AND 350 LITERS OF HYDROGEN STORED

The best H2 storage device featuring the most advanced quick connection
system with the highest performances yet with optimized system for best
adsorption and absorption.
Hydrogen storage represents one of the most important and delicate
hydrogen chain rings. H2planet’s specialized team proposes today the definitely
solution for every hydrogen fuel-cell and relative systems setup.
Storage hydrogen has never been so easy and safe thanks to the ultra-compact
metal hydrides gas cylinders designed by H2planet.

EU, USA, CHINA, italian patent pending for an easy and safe hydrogen storage.



Use and applications

MyH2® SLIM can store at only 20bar 3 times more hydrogen than the high pressure (200bar) standard industrial vessels in the same water capacity with huge storage and safety advantages.

MyH2® can be adopted for practical and safe hydrogen storage for several technical and scientific uses:

• Welding in remote areas for professionals
• Precision welding for goldworking
• Mechanic's workshops
• Weather and mapping baloons
• Labs, gascromatography, etc.

Advantages

MyH2® SLIM is the most advanced hydrogen metal hydrides storage system, compliant with ISO 16111 and transportable UN3479, CE certified for the industrial pressure vessels and the only one low pressure hydrogen storage system on the market which is compliant with EU and italian laws and regulations about pressurized vessels.

MyH2® SLIM can be also delivered according to US D.O.T. standards and norms, enquiry for your a version compliant with regulations of your country.

Refill

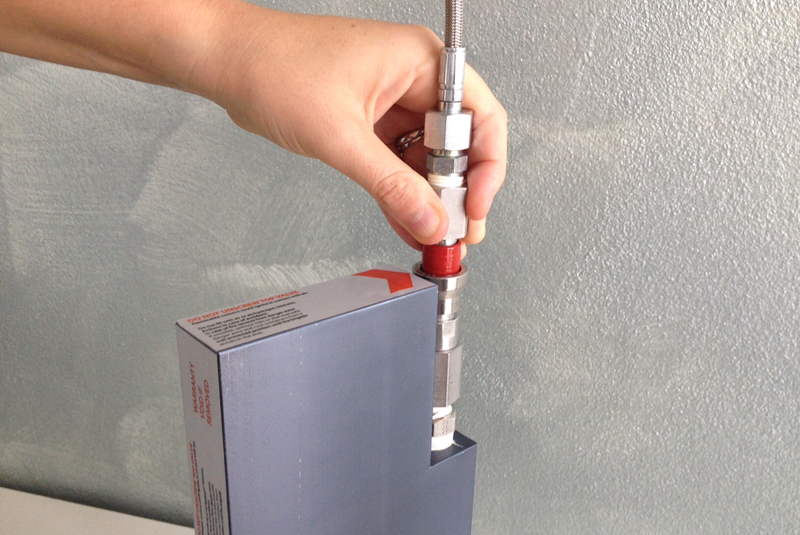

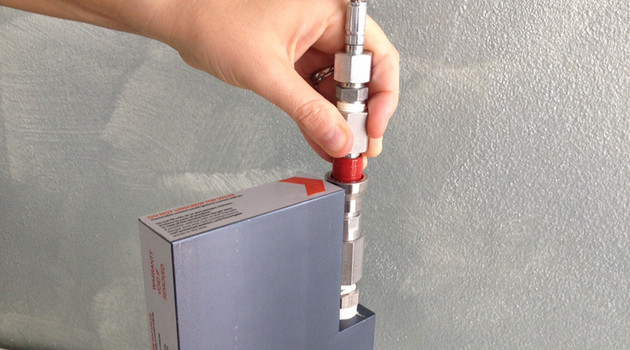

You can easily refill MyH2® by yourself through compatible H2planet Hy-PEM XP electrolysers and connections provided.

Alternatively, you can purchase or rent a compressed hydrogen cylinder for your refills to refill MyH2® in full autonomy and few hours through H2planet Refilling Kit including pressure regulator and tube for quick connection.

Don't hesitate to contact our staff to discover the most suitable solution for your case.

TECHNICAL SPECIFICATIONS

MyH2® SLIM 80

Normal capacity: 7g (ca. 80l) hydrogen
Hydride alloy: model AB2
Dimensions: 12x10x3cm
Cartridge internal volume: 0.12 liter
Mass of the entire system: 1175g
Maximum operating pressure: 20 bar
Maximum test pressure: 100 bar
Maximum H2 charging pressure: 30 bar (static)
Minimum temperature charging cooling: 10°C
Maximum operating temperature: 65°C

MyH2® SLIM 350

Normal capacity: 32g (ca. 350l) hydrogen
Hydride alloy: model AB2
Dimensions: 32,5X12X3cm
Cartridge internal volume: 0.48 liter
Mass of the entire system: 3600g
Maximum operating pressure: 20 bar
Maximum test pressure: 100 bar
Maximum H2 charging pressure: 30 bar (static)
Minimum temperature charging cooling: 10°C
Maximum operating temperature: 65°C

Transportation

MyH2® SLIM is the most advanced hydrogen metal hydrides storage system, compliant with ISO 16111 and transportable UN3479,
CE certified.

We ship MyH2® SLIM worldwide according to ADR/DGR/IMDG regulations and standards thanks to
the compliant drums and packing comprised with each supply.
