THE MODULAR AND FLEXIBLE LONG TERM ENERGY STORAGE

BRICK BY BRICK

H2BRIX
is the new H2planet modular concept for hydrogen plant systems.

Thanks to its modularity the system could be developed according
to customers needs and goals with the maximum flexibility and versatility.

MICRO-GRID SOLUTION

The Project is modular!
The hydrogen plant system is divided in conceptually
different parts, each one with its own purpouse:

CONVERT, STORE, POWER and REFILL.





2 SOLUTIONS

Depending on the goal of the system,
Energy could be released to the Grid or used to directly charge Electric Vehicles.
Hybrid systems could be obtained with all these modules, in order to fulfill both targets.
Each module represents a different process.
Each process is installed in a different Container.


























CONVERT

Electrolysis process will generate Hydrogen from Elecricity.

The produced Hydrogen needs to be purified in order to remove moisture and reach a higher grade.

This process is achieved with Electrolyzer and Purifier devices installed in this container.

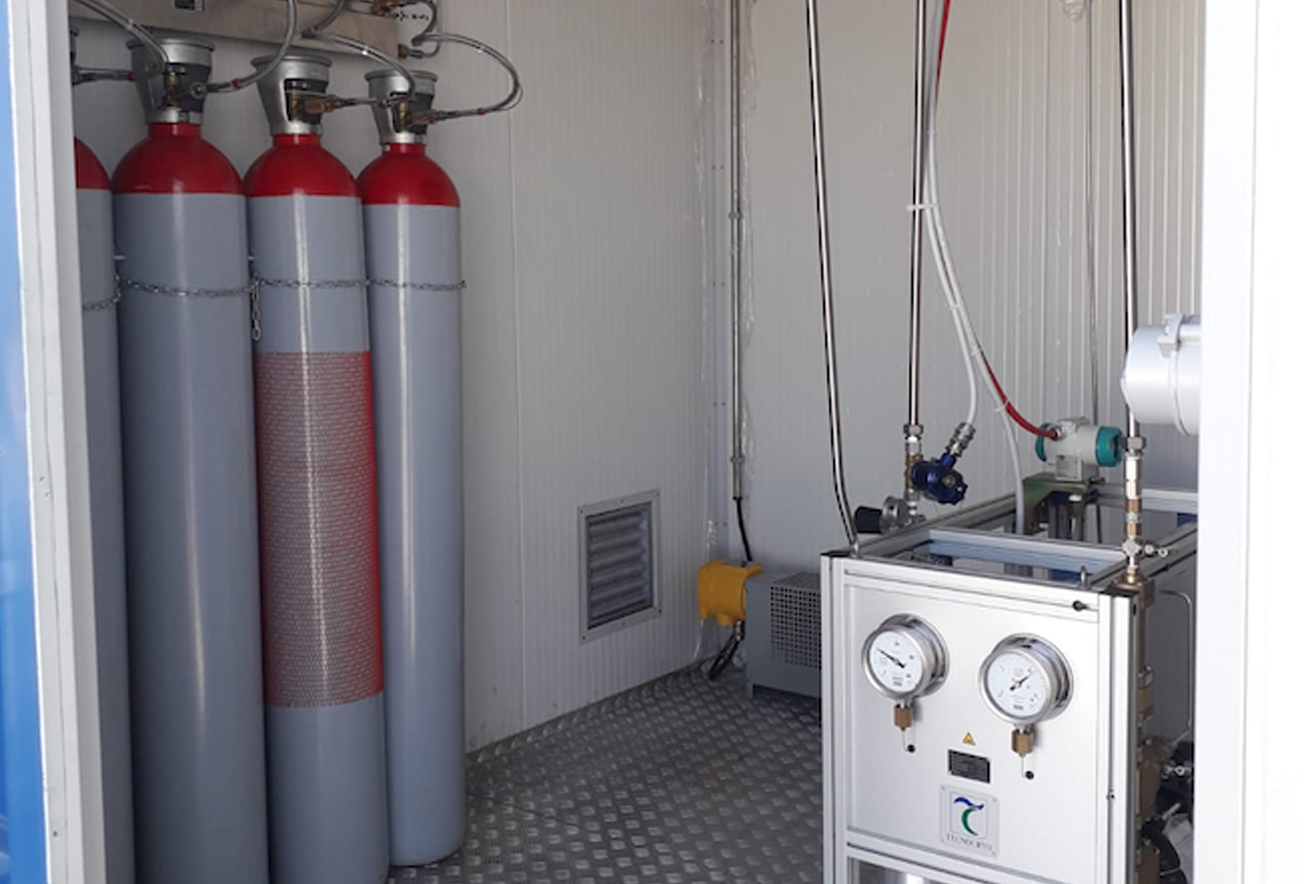

STORE

Compression process uses compressed Air to boost Hydrogen compression.

The compressed Hydrogen is stored in pressure tanks.

This process is achieved with Compression skid and Pressure Tanks installed in this container.

Compressed Air is generated in the CONVERT module and transferred to the skid.

This container is entirely ATEX certified.

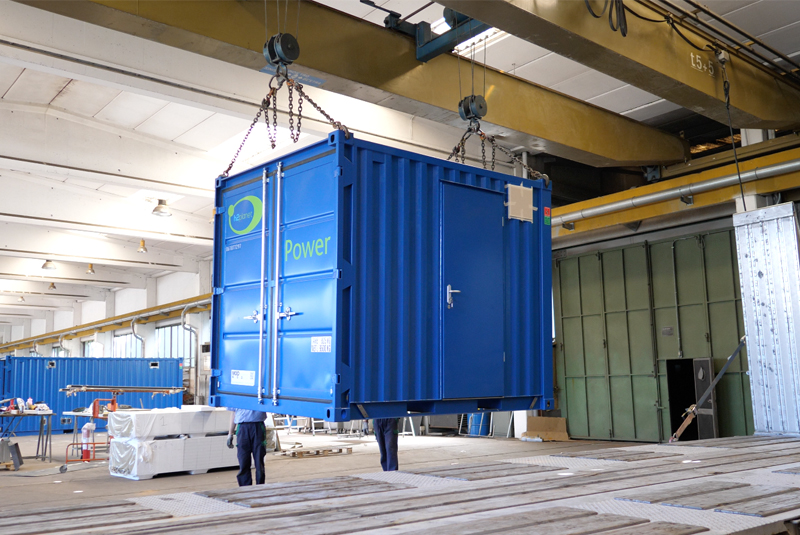

POWER

Hydrogen is used to generate Electricity and heat as a by-product. A Fuel Cell system is installed in this container as a cogenerator.

Hydrogen is taken from the STORE container and a pressure regulator decreases the pressure.

An Inverter is installed in this container in order to convert the output of the Fuel Cell (DC) into an AC output to the Grid.

The Fuel Cell is water cooled, thus generated heat is recovered with a heat exchanger.

REFILL

Hydrogen is used to generate Electricity.
A Fuel Cell system is installed in this container.

A Charging Column for Electric Vehicles is installed here.

A DC-DC converter rise the DC voltage produced by the Fuel Cell, in order to support the Fast Charge Mode in DC.

Also in this module, generated heat could be recovered.

EASY INSTALLATION

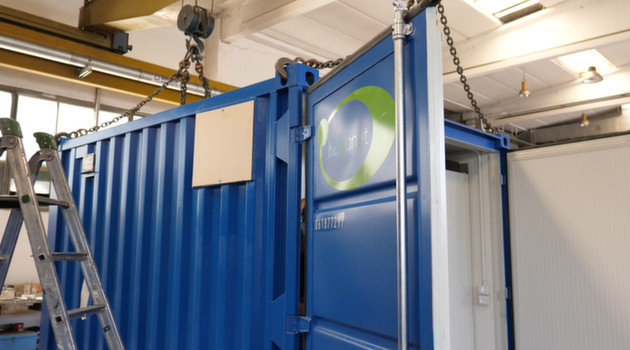

Modules allow an easier transportation to the customer's site.

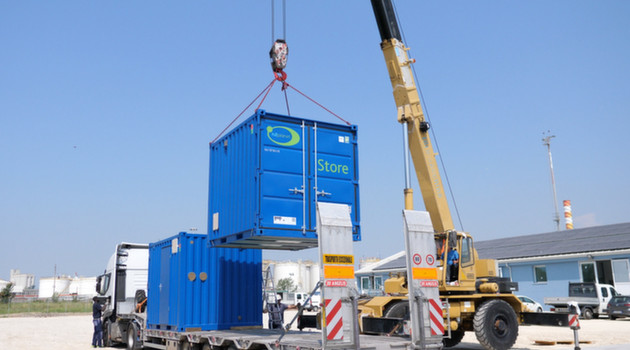

Modules are placed in their final position.

Installation consists in just connecting each module together.
