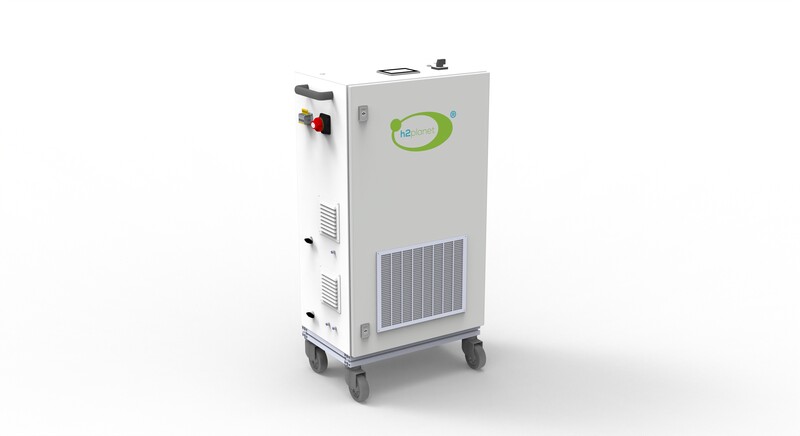

GreenHub is a CO2-free electricity generator that uses hydrogen fuel cells. The system provides clean energy independently of the power grid, utilizing an electrochemical cell with a polymer electrolyte, and is equipped with a safety system powered by SafetyBoard technology. The system’s only byproduct is pure demineralized water. The device is designed exclusively for indoor use or in protected outdoor areas.


General Technical Specifications
The technical specifications applicable to both models are as follows:

  • Operating temperature: +5 / +35°C (ideal temperature 5–20°C, non-condensing)
  • Operating humidity: 0–80% at 25°C
  • Noise level: 50 dB at 1.5 m
  • Protection rating: IP20
  • Hazardous emissions: None
  • Maximum altitude: < 2000 m
  • Fuel: Ultra-pure hydrogen gas, minimum purity 99.995% (grade 4.5; recommended grade 5.0)
  • Supply pressure: 6–25 bar (maximum pressure: 27 bar)
  • Display: 3.2-inch LCD touchscreen
  • Connectivity ports: LAN, USB (5 V DC–500 mA max), I/O terminal blocks (2 x 2-pin ports + 1 x 3-pin port)

Technical Specifications - DC Version

Power from PEM fuel cells: 1000 W
Main output socket: DC connector
DC input/output (banana plugs): 24.4–27.6 V DC
External battery (minimum): 12 V, 12 Ah
Control display: 3.2" LCD touchscreen
Integrated programmable timer
Communication ports: USB, Wi-Fi, LAN
I/O ports: 3 ports for remote interfacing / PLC
Dimensions: 900 x 600 x 300 mm
Net weight: 27 kg


Technical Specifications - AC Version

Power from PEM fuel cells: 1000 W
Rated power: 800 W
Maximum power (5-second peak): 1700 W
Main output socket: AC socket with interlocked switch / Shuko AC socket
DC input/output (banana plugs): 24.4 - 27.6 V DC
External battery (minimum): 12 V, 12 Ah
Control display: 3.2" LCD touchscreen
Built-in programmable timer
Communication ports: USB, Wi-Fi, LAN
I/O ports: 3 ports for remote interfacing / PLC
Dimensions: 900 x 600 x 300 mm
Net weight: 30 kg
