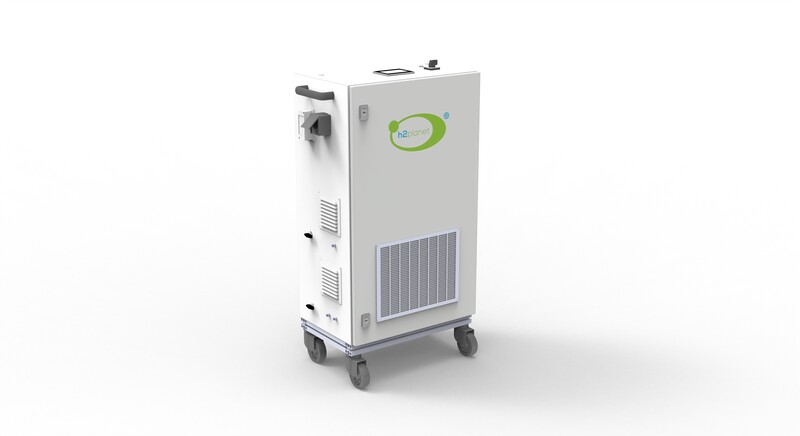

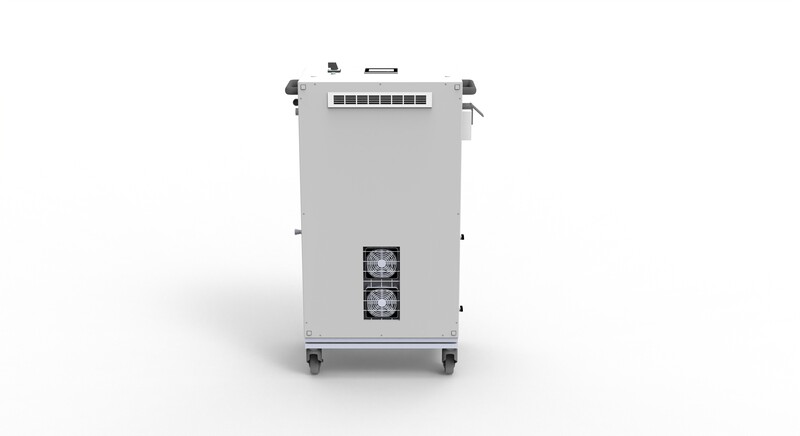

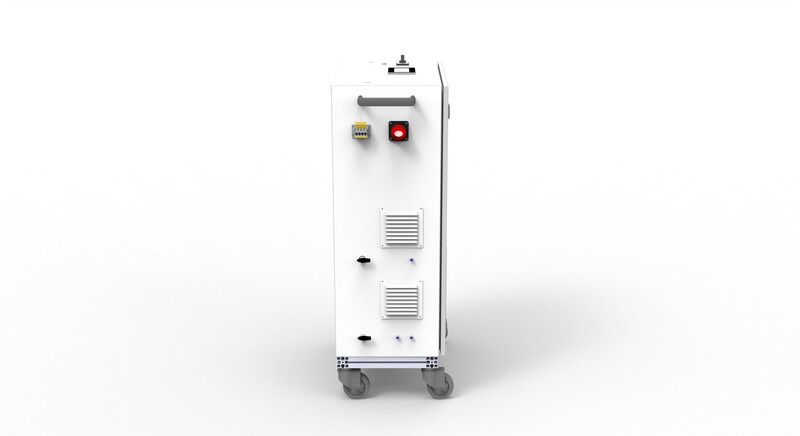

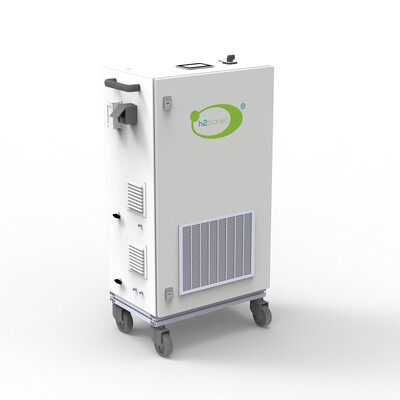

GreenHub 3 PRO 2000 AC - DC
The GreenHub3 PRO 2000 AC-DC generator is a professional hydrogen PEM fuel cell system designed to provide clean, quiet, and zero-emission power, operating completely independently of the electrical grid. It is an ideal solution for industrial backup power, telecommunications, radio stations, and remote areas, capable of replacing traditional generator sets.
The device produces only pure demineralized water and heat as byproducts.
The following describes the specifications and main features, broken down by version.
General Technical Specifications
The technical specifications applicable to both models are as follows:
- Power supply: Uses ultra-pure hydrogen gas (minimum purity 99.995%, grade 4.5).
- Gas pressure: Between 6 and 25 bar (maximum 27 bar).
- Operating conditions: Designed for indoor use or protected outdoor environments only (ideal temperature between 5 and 20 °C).
- Connectivity and control: Includes USB ports (5 V DC - 500 mA max), auxiliary DC outputs (12 V DC), I/O terminal blocks for remote management, and an LCD touchscreen with weekly programming.
- Safety: Compliant with international standards IEC 62282-3-1, 62282-3-3, and CE marking.

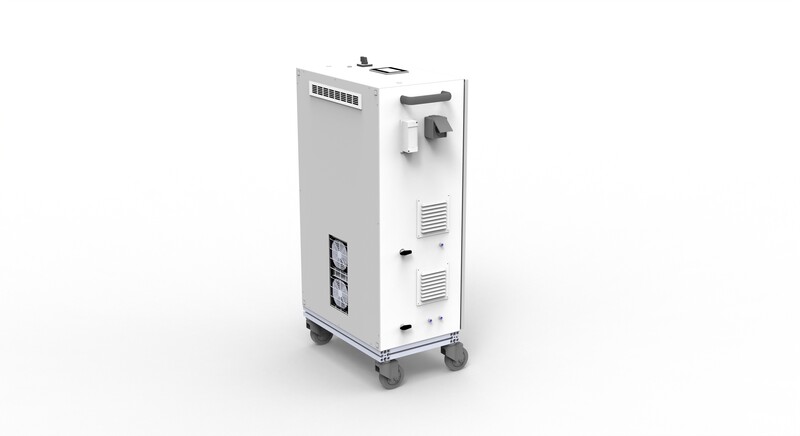

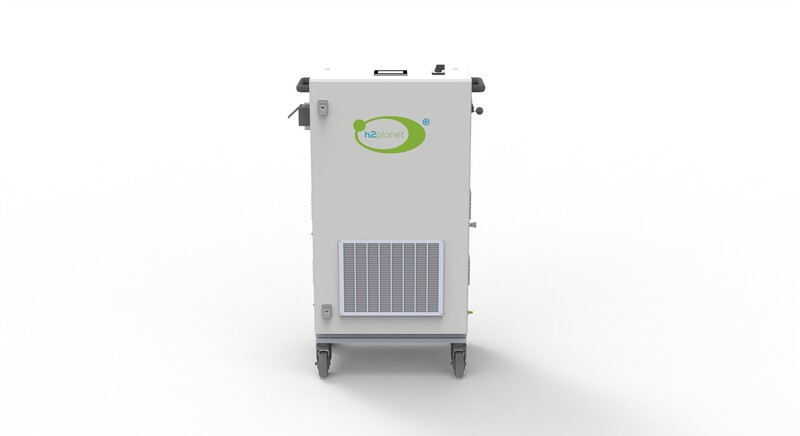

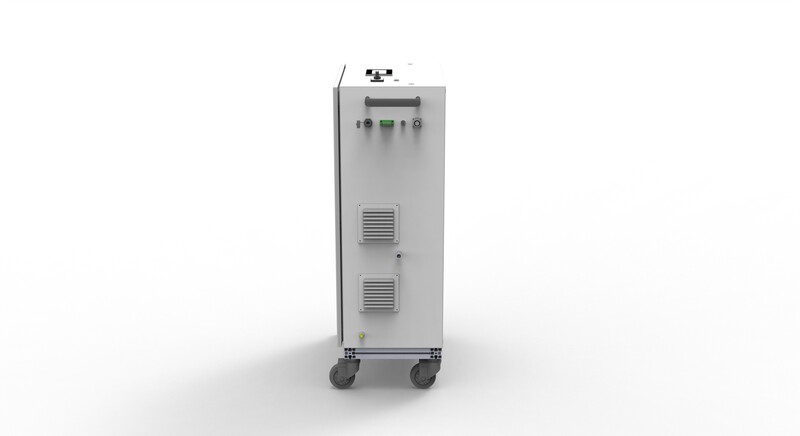

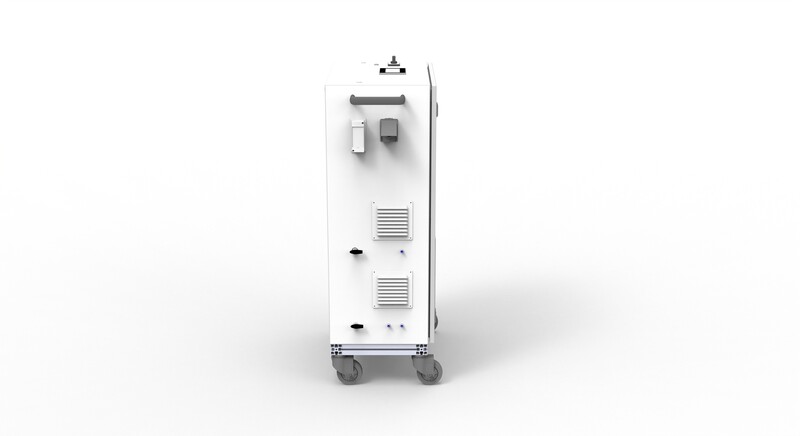

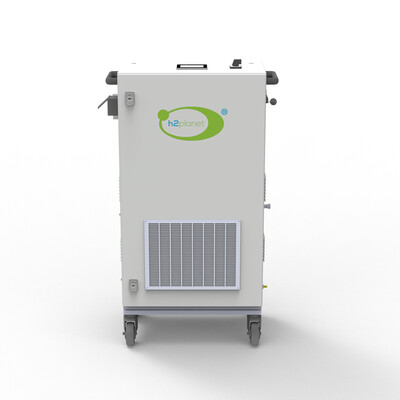

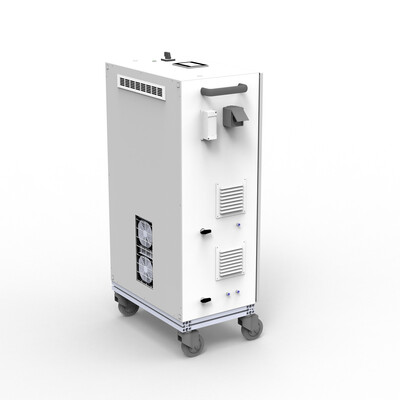

Technical Specifications - AC Version
Power from PEM fuel cells: 2000 W.
Rated power: 1600 W.
Maximum power (5-second peak): 1700 W.
Main output socket: Shuko AC socket (CEE 7/4).
DC Inputs/Outputs (banana plugs): 24.4–27.6 V DC.
External battery (minimum): 24 V, 17 Ah.
Connectivity and Control
Display: 3.2-inch touchscreen LCD display.
Connection ports: LAN, USB (5 V DC - 500 mA max), I/O (2 x 2-pin ports + 1 x 3-pin port).
Remote connectivity: Integrated Wi-Fi transmission module for remote control via app (iOS/Android).

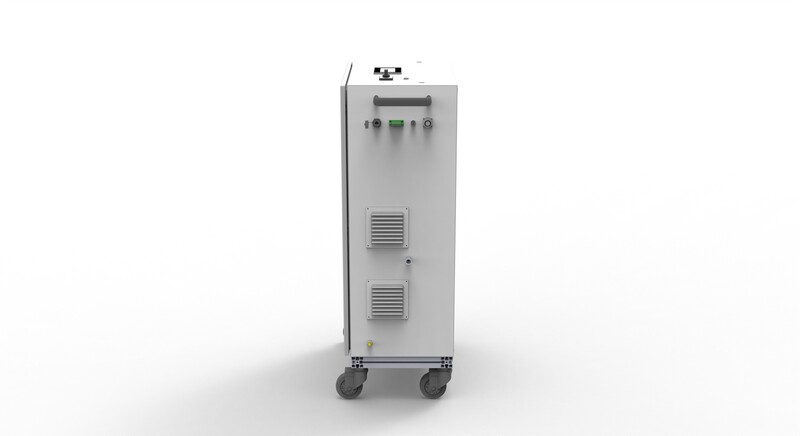

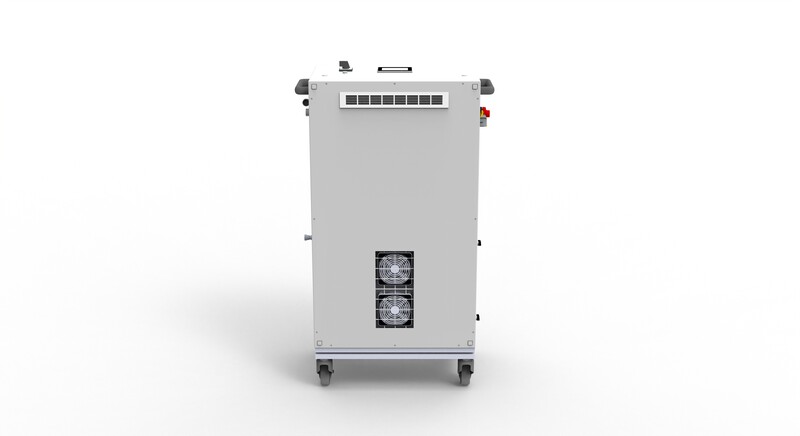

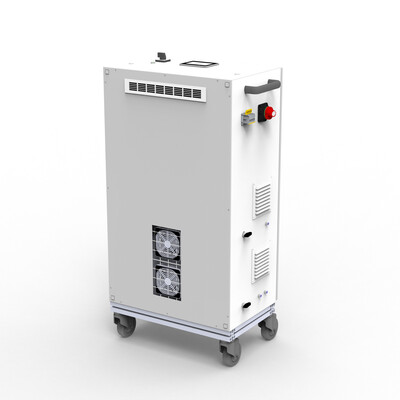

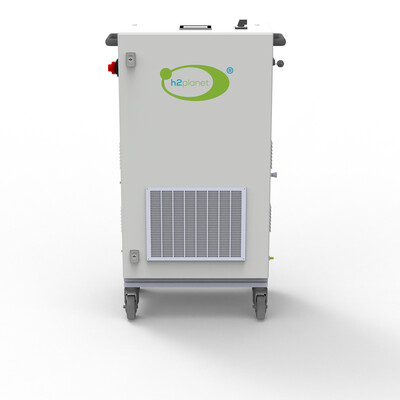

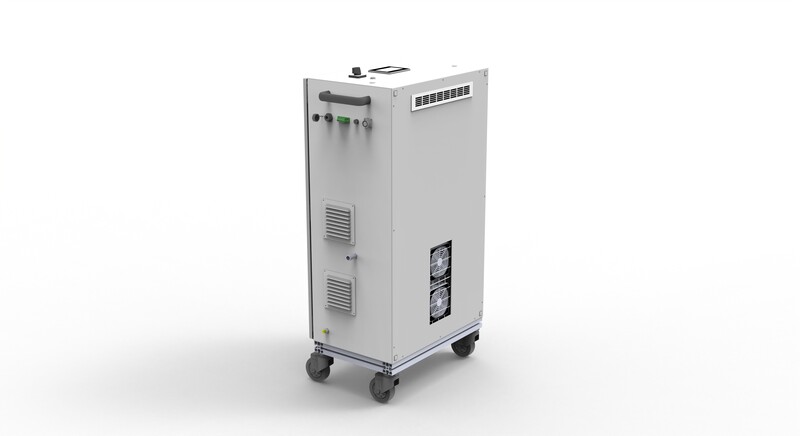

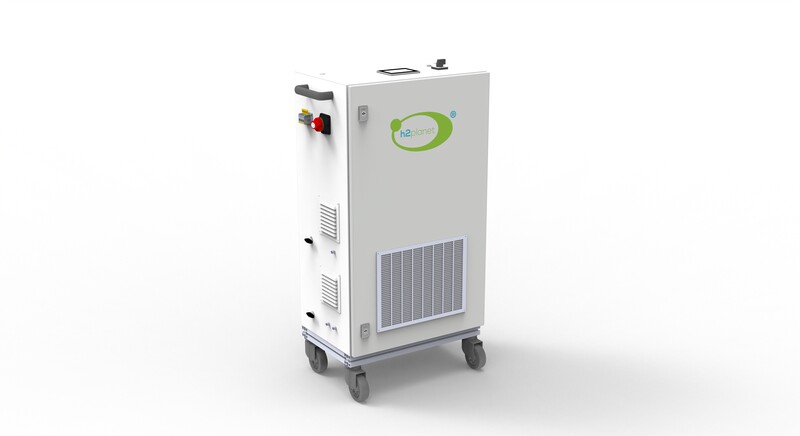

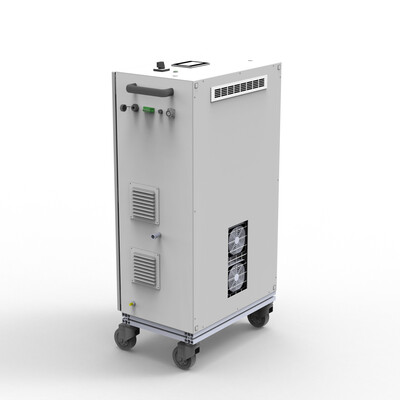

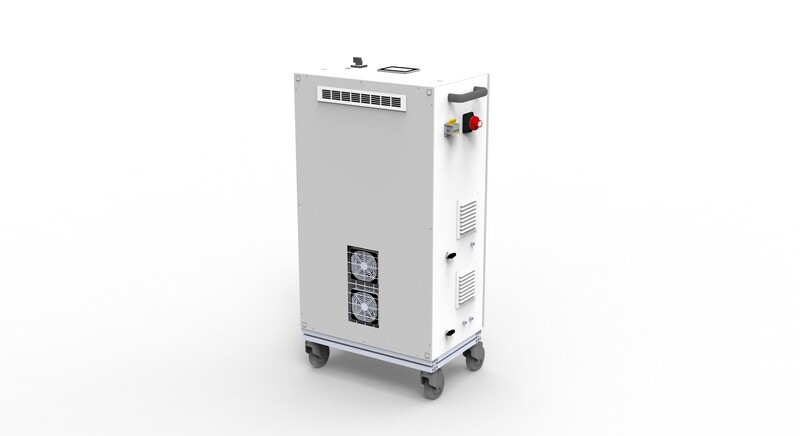

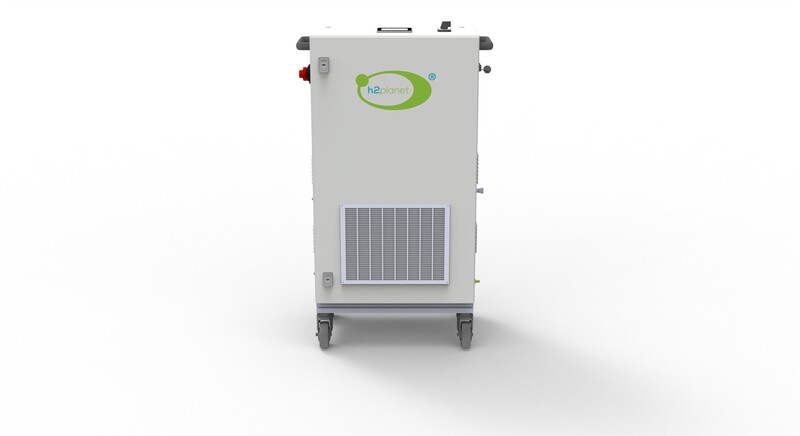

Technical Specifications - DC Version
Power from PEM fuel cells: 2000 W.
Rated power: 1800 W.
Maximum power (5-second peak): 1900 W.
Main output socket: DC connector (49–56 V DC range).
DC Inputs/Outputs (banana plugs): 24.4–27.6 V DC.
External battery (minimum): 24 V, 17 Ah.
Connectivity and Control
Display: 3.2-inch touchscreen LCD display.
Connection ports: LAN, USB (5 V DC - 500 mA max), I/O (2 x 2-pin ports + 1 x 3-pin port).
Remote connectivity: Integrated Wi-Fi transmission module for remote control via app (iOS/Android).
