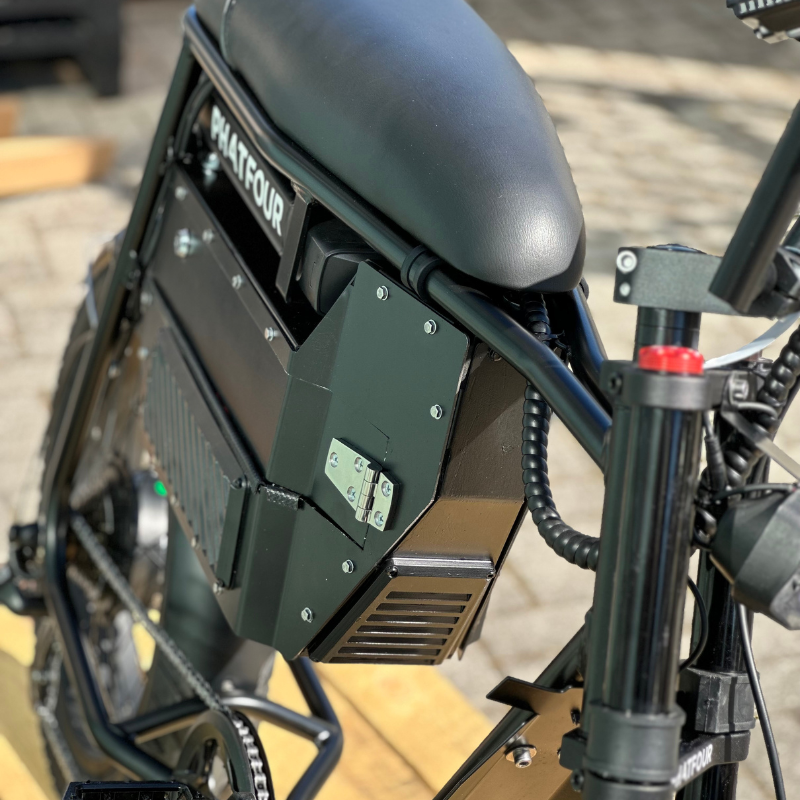

H-Bike 3
In collaboration with the Dutch Phatfour, H2Planet creates the H-Bike 3, the new electric pedal assist bicycle whose charging system is managed by our patented hydrogen storage system.
H-Bike 3 is the future of smart mobility on two wheels.
The innovative and harmonious design makes H-Bike 3 the ideal vehicle for any type of itinerary.
GENERAL INFORMATION
Model: H-Bike
Color: Ice white / Night blue
Frame: Aluminium
Wheels: 26” – anti puncture gel
Gear: 8-speed internal hub
Motor Power / Torque: 250 W / 22 Nm
Weight: Approx. 25 kg
Brake: Rear: hub roller / Front: 180 mm disc
Front Fork: Suspension
Maximum speed: 25 km/h in compliance with applicable standards
Range: 150 km @ nominal power
Electric Generator: Fuel Cell
Recharge Time @ 80%: 30 min
Working Temperature: 0-40 °C
Accessories: LED display
FUEL CELL SYSTEM
Fuel Cell Type: PEM Polymer Electrolyte Membrane
Power: 300 W
Voltage: 36 V
Fuel: Hydrogen
Working Pressure: 0.55–0.65 bar
Hydrogen Storage Type: Metal hydride canister
Canister Capacity: 960 l
Refilling Pressure: 20 bar
