Hy-COMP XT LP

Rate this product

Invia

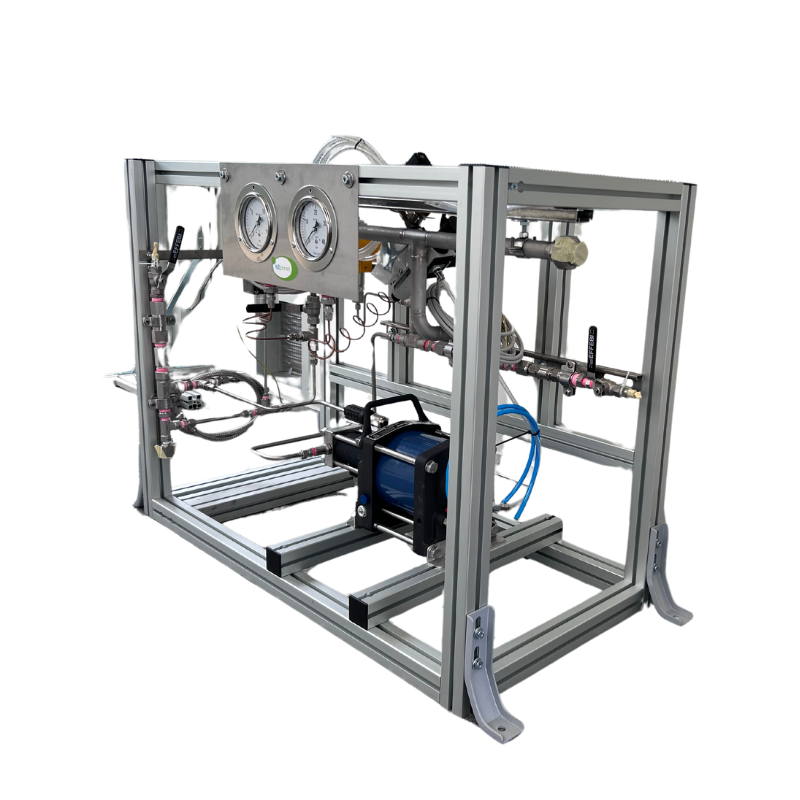

From one decade H2planet experience in hi-quality hydrogen technologies, here comes the first plug&play automated storage system for mid and high pressures outputs, starting from whatever pressure value of pure hydrogen source.

The most innovative technologies based on air-driven boosters featuring the lower energy consumptions on market in a unique device characterized by rapid installation and user-friendly interface.

This automated professional hydrogen compression system is for home,industry and professional uses like: energy storage, metal hydrides refills, refilling stations, industrial storage.


Hy-COMP XT in LP (Low Pressure) version has been studied for the compression of small flows of a few cc/min of hydrogen and to reach pressures of 15 bars or more.

Hydrogen flow rate input: 0 - 2000 Nl/hour
Hydrogen pressure input range: 1-5bar
Hydrogen pressure output range: 1-30bar
Recommended/minimum H2 purity: 99.999% / 99.99%
Required minimum dew point: -36°C
Weight (dry): 130 kg
Power consumption peaks: 1600W (uncostant power draw)
Input voltage: 230VAC / 50-60 Hz
Recommended operating conditions:
- temperature +5°C to +40°C
- relative humidity 80% up to 31°C, decreasing linearly to 50% at 40°C
Skid dimensions 1100mm x 480mm x 910mm (LxWxH)
Hy-REFILL BOX dimensions 420mm x 250mm x 510mm (LxWxH)
