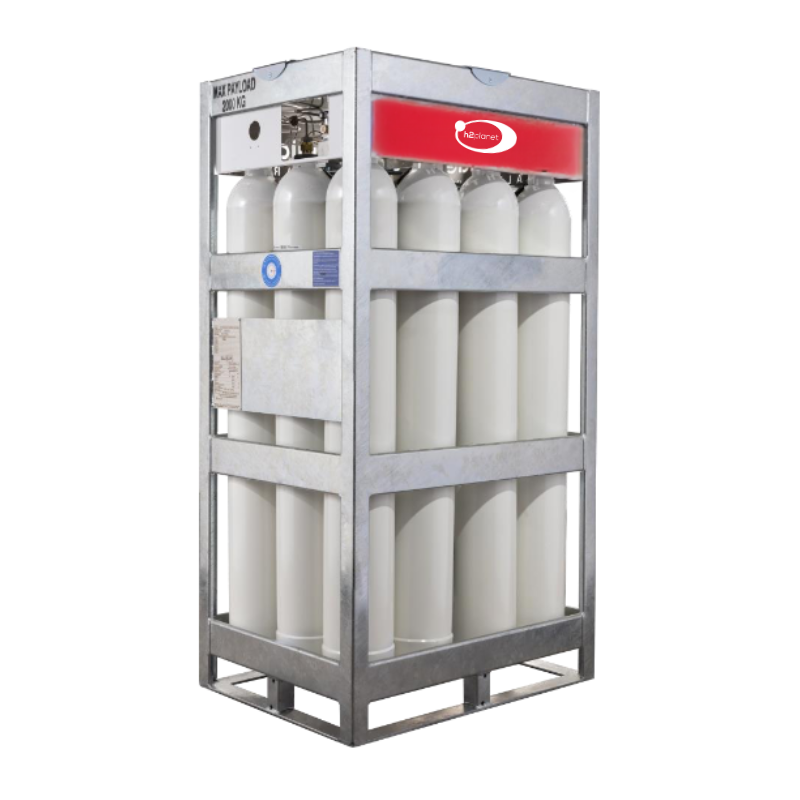

Cylinder Cluster
H2planet cylinder packs are the ideal solution for transporting hydrogen gas on-site due to the possible lifting with eyebolts and solid structure even in rainy conditions, thus maximising ventilation.
H2planet cylinder packs can store hydrogen in standard 12, 16 or 20 cylinder sizes of up to 50l each and pressures of up to 200bar. A total of up to 200Nm3 of hydrogen gas can be stored in a small space. Ideal in hydrogen transfer and displacement situations in areas of need such as construction and installation sites, as well as for coupling with Hy-COMP XT HP by H2planet automated compression systems to automate filling.
On request, H2planet can also customise the systems for cylinder positioning with cap and valve downwards in case it is necessary to purge moisture from stored wet gas, as well as for different numbers of stored cylinders such as 4, 8 or different ones.

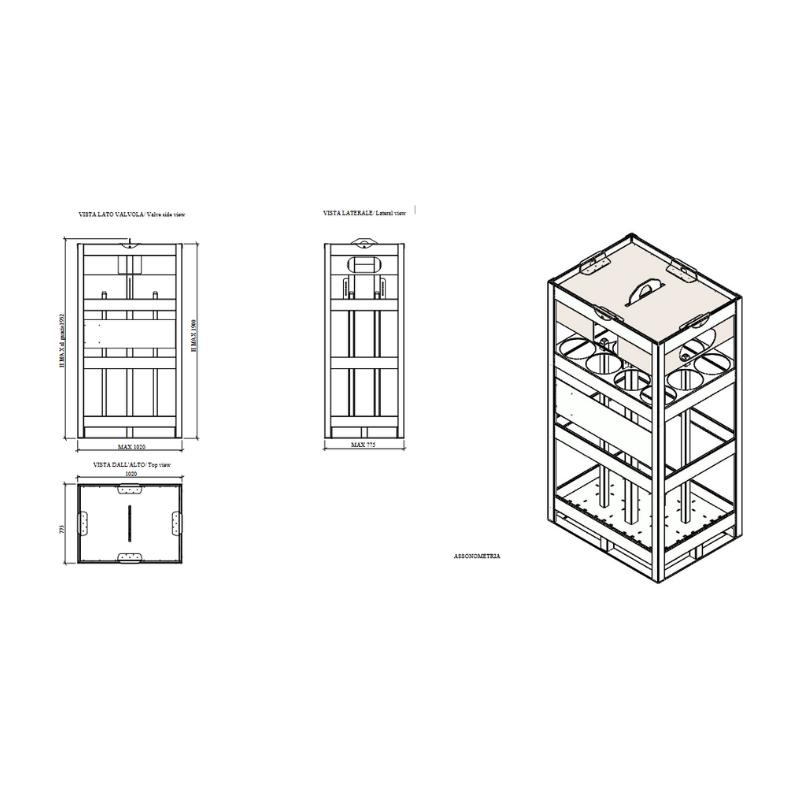

Type Vertical cylinder bundle 12
Maximum capacity = 600 Liters
Cylinder diameter = Nominal 204(40 Lt)-229(50Lt)
Max payload =2000 Kg
Design = ISO 10961:2019
Certification = Tped/Adr/Adn/Rid/Imdc
Handling = Gru ( Forklift truck/ crane)
Surfaca finish = Hot dip galvanizing
Overall =dimensions 1020x775x2052
Type Vertical cylinder bundle 16
Maximum capacity = 640 lt/ 800 Lt
Cylinder diameter Nominal =204(40 Lt)-229(50Lt)
Max payload =2400 Kg
Design = ISO 10961:2019
Certification = Tped/Adr/Adn/Rid/Imdc
Handling = Gru ( Forklift truck/ Crane)
Surface finish Hot dip galvanizing
Overall = dimensions 1020x1020x1982
Type Vertical cylinder bundle 20
Maximum capacity =1000 Litri
Cylinder diameter Nominal =204(40 Lt)-229(50Lt)
Max payload = 2400 Kg
Design = ISO 10961:2019
Certification = Tped/Adr/Adn/Rid/Imdc
Handling = Gru (Forklift truck/ Crane)
Surface finishing = Hot dip galvanizing
Overall = dimensions 1020x1270x1957
