Intro
Energy "ON DEMAND"
MFC is as quiet as a whisper and has minimal carbon emissions. Its integrated fuel cell uses an
electro-chemical process to generate electricity with few moving parts.

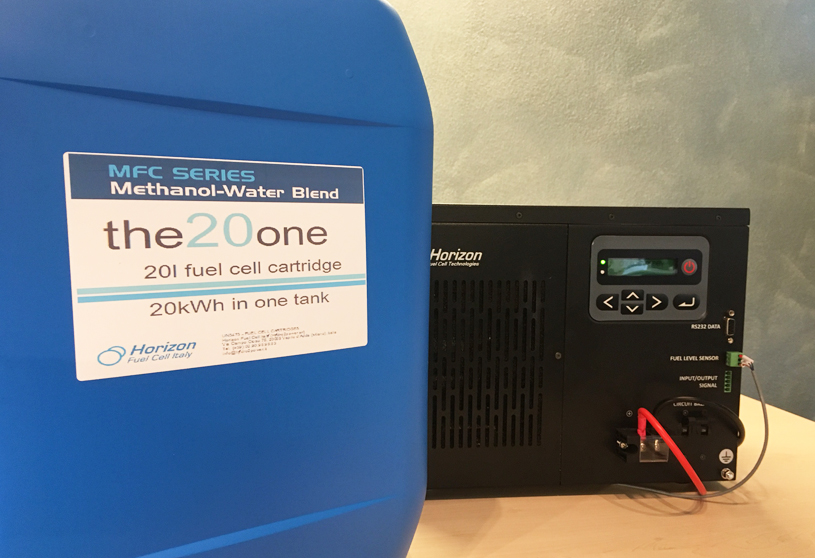

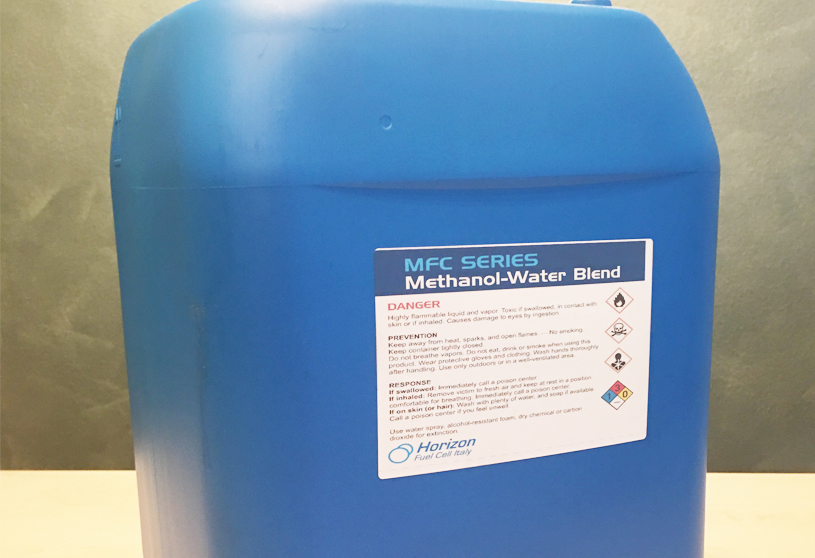

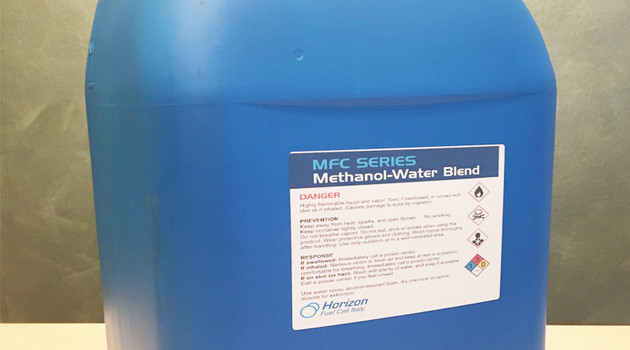

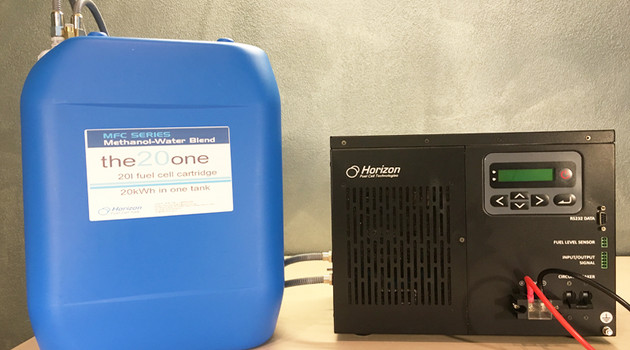

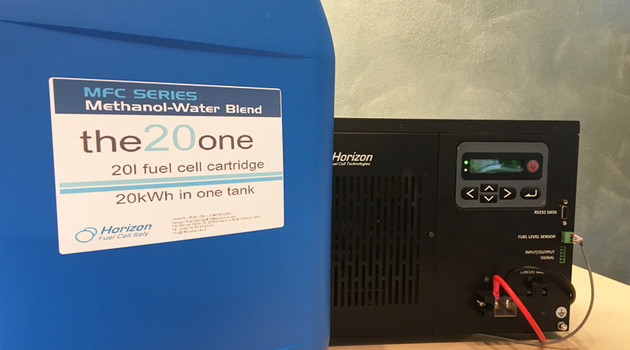

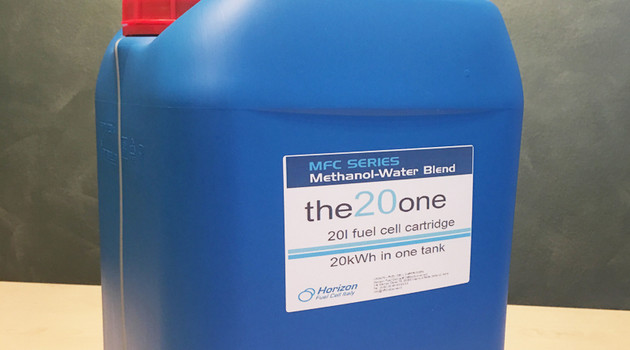

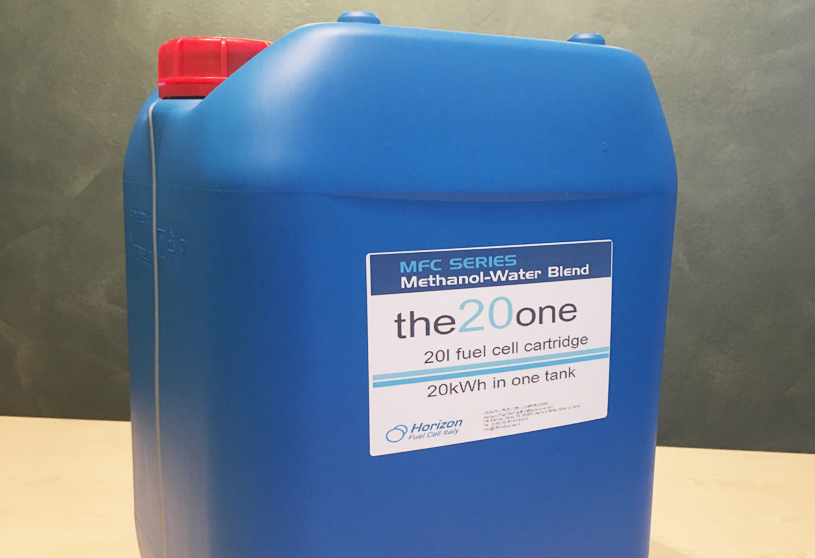

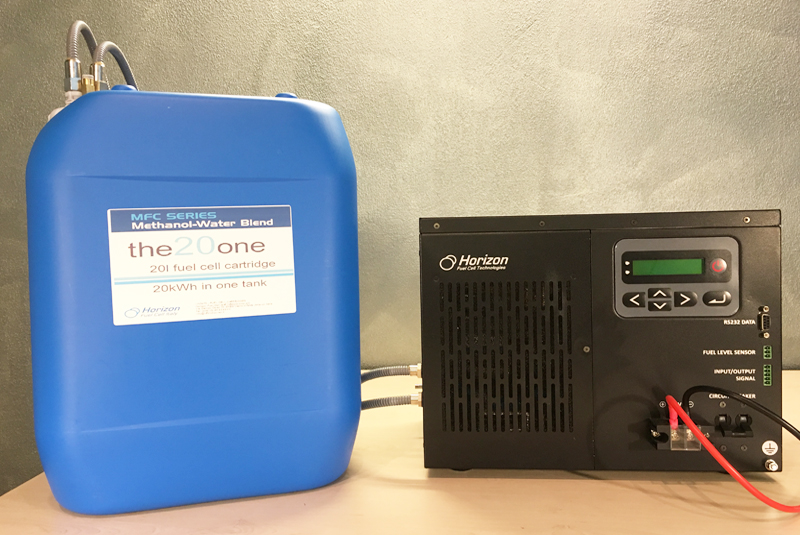

The MFC operates on a low-volatility methanol-water blend.

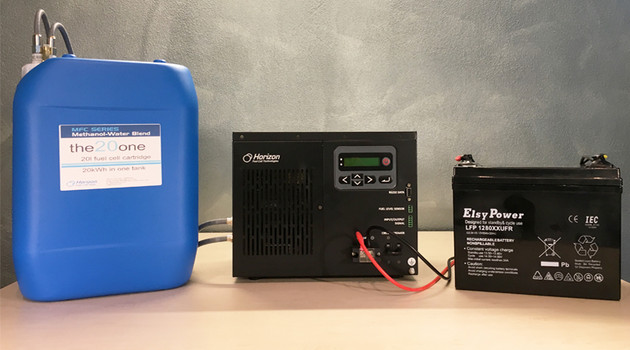

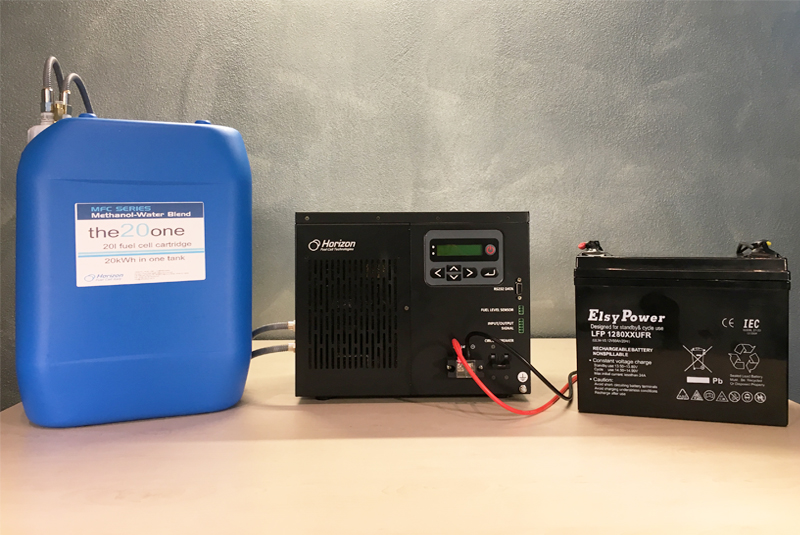

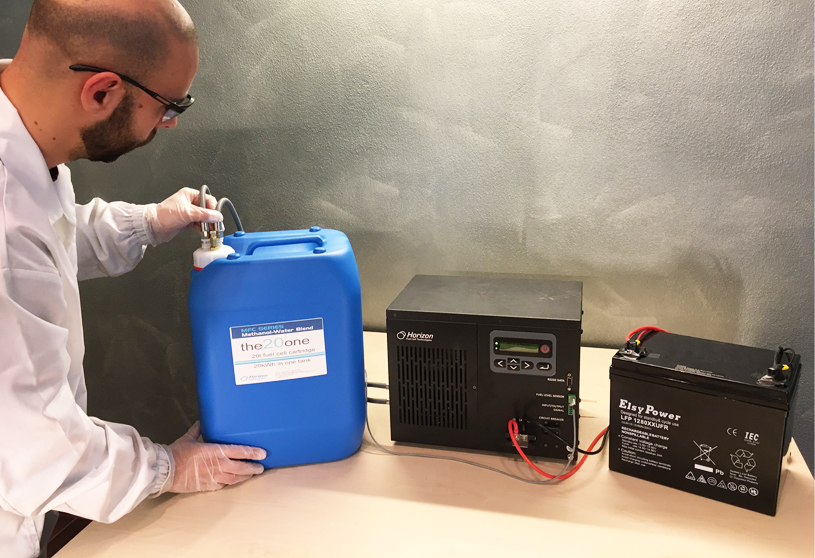

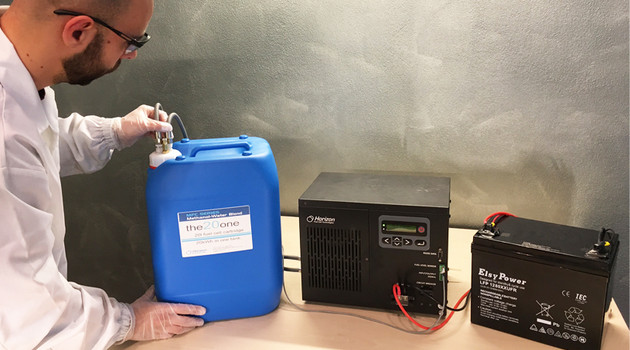

The MFC fuel cell system can be configured to connect directly to yourload to provide constant,
prime power, or connect to your battery to continuously monitor and maintain its charge level.
Description
MFC can be combined with a solar system to reduce fuel consumption and provide an even longer lasting power source. If the solar modules can produce adequate electricity, the solar system takes over and MFC goes into standby mode.
Functioning
If your battery voltage drops below a predetermined threshold, the unit automatically starts to carry the load and recharge the battery.
This can prevent excessive deep discharge and recharge cycles, thus maintaining longer service life for your battery.
After charging is complete, the MFC reverts to standby mode automatically.
Use and applications
- On-grid back-up power
- Extended duration backup
- Emergency Lighting
- Temporary Signage
- Emergency Response
- Monitoring-Surveillance
- Rail signaling
- Airfield lighting
- Telecom sites
Advantages
Robust industrial construction and metal casing, outdoor cabinet
Near-silent operation, few moving parts
Ensures batteries are always charged

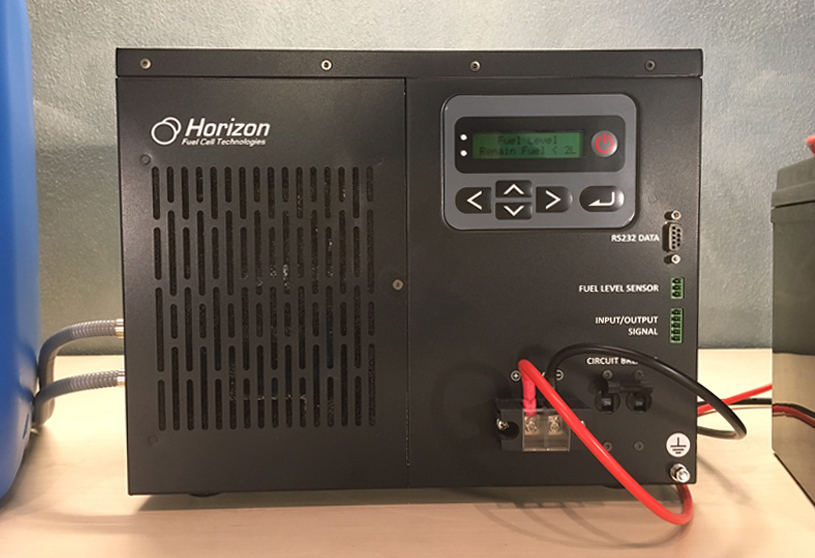

Remote monitoring and control functionality
Hybrid solution for battery charging with wind or solar power
Environmentally friendly, extremely efficient
Mobile, light and compact

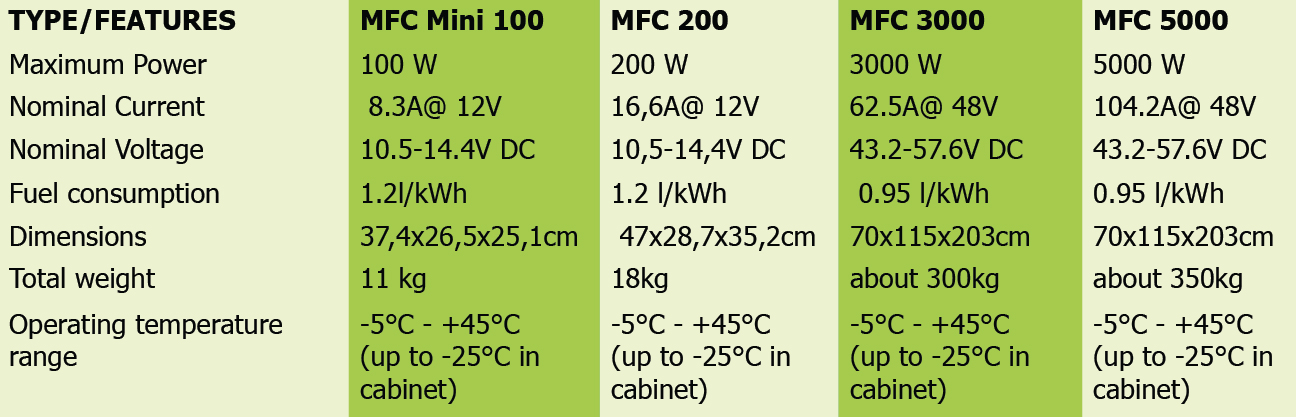

TECHNICAL SPECIFICATIONS
