H2 St3Rel
Buy now H2 St3Rel with:

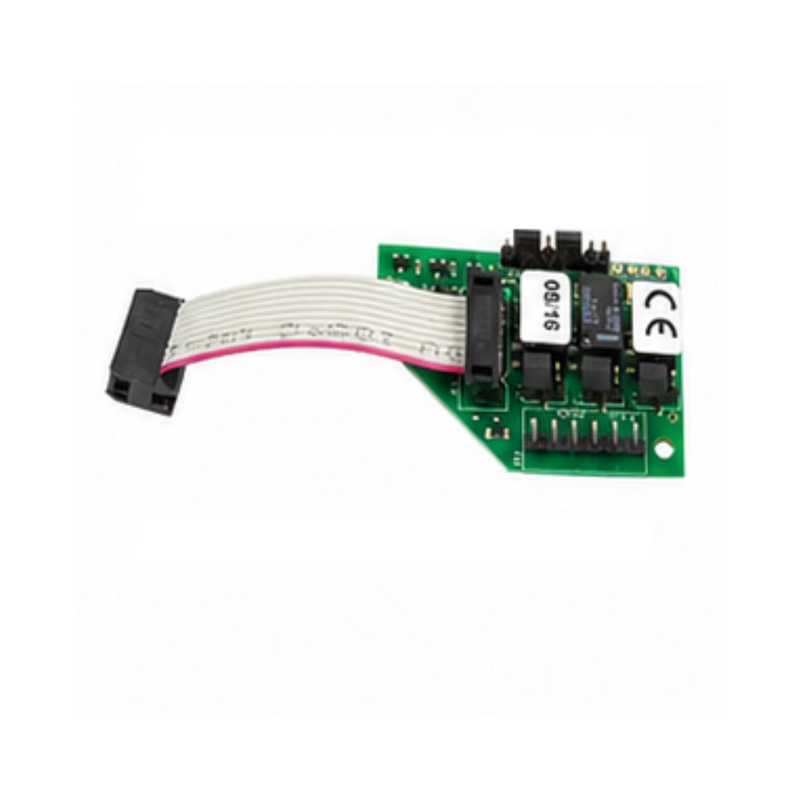

The ST3REL is an optional 3-relay board designed for Smart S, Smart 3, and NCI series gas detectors. It enables the management and output—via dry contacts—of various signals originating from the detector.
The three relays can be configured for Fault/Watchdog signaling, first or second alarm thresholds, and an additional alarm threshold, respectively. Relay function configurations can be modified via the detector's operating menu, offering flexible output management tailored to specific system requirements.
The board installs directly onto the detector's mainboard and comes with a ribbon cable to facilitate connection and integration into the gas detection system.
The three relays can be configured for Fault/Watchdog signaling, first or second alarm thresholds, and an additional alarm threshold, respectively. Relay function configurations can be modified via the detector's operating menu, offering flexible output management tailored to specific system requirements.
The board installs directly onto the detector's mainboard and comes with a ribbon cable to facilitate connection and integration into the gas detection system.
- Type: 3-relay output board
- Compatibility: Smart S, Smart 3, and NCI series gas detectors
- Number of relays: 3
- Relay 1: assigned to Fault / Watchdog signaling
- Relay 2: configurable for the first or second alarm threshold
- Relay 3: configurable for the second alarm threshold
- Outputs: via dry contacts
- Installation: direct insertion onto the detector's mainboard
- Connection: supplied with a ribbon cable for connection
- Configuration: relay functions adjustable via the detector's operating menu
- Application: management and signaling of alarm states and faults in the gas detection system
