H2Maker AN Software
H2 Maker AN Software is an advanced desktop control application designed for the comprehensive management, real-time monitoring, and automation of AEM (Anion Exchange Membrane) hydrogen electrolysis systems (Hy-Anion XP/XP HP series).

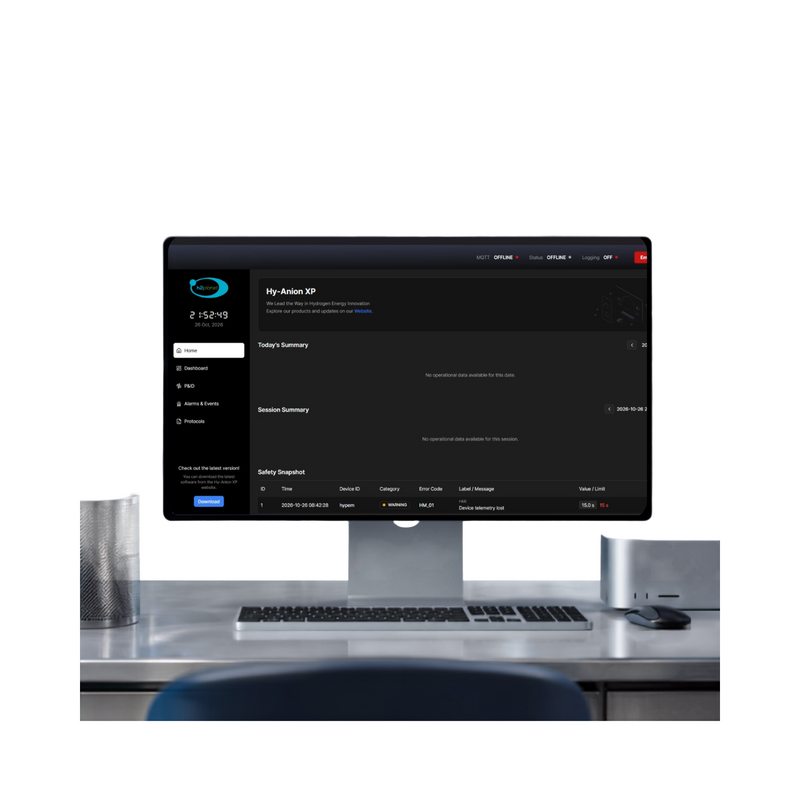

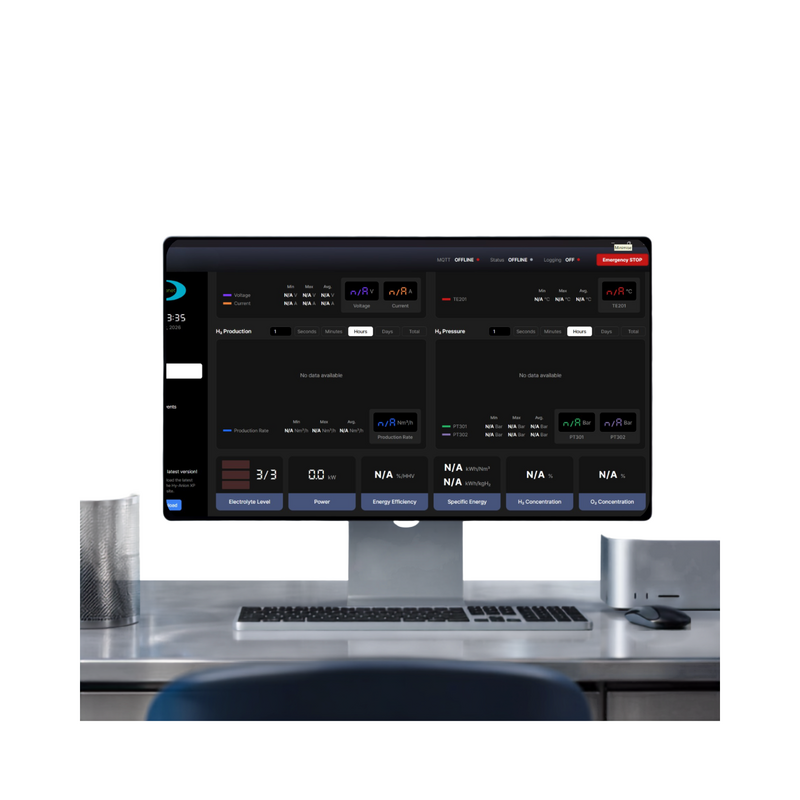

The software features an interface organized into intuitive operational tabs, including a main P&ID screen (for controlling and directly applying operating parameters such as voltage, current, temperature, and electrolyte flow rate), a dashboard for viewing real-time and historical trend charts, a "Home" section providing session summaries and energy metrics, and a dedicated log for alarms and events.
It also incorporates Project Manager functions for data archiving and export (in CSV format), the management of automated protocols for repeatable test cycles, and support for the industry-standard Modbus TCP protocol, enabling integration with external PLC/SCADA systems.
The software features an interface organized into intuitive operational tabs, including a main P&ID screen (for controlling and directly applying operating parameters such as voltage, current, temperature, and electrolyte flow rate), a dashboard for viewing real-time and historical trend charts, a "Home" section providing session summaries and energy metrics, and a dedicated log for alarms and events.
It also incorporates Project Manager functions for data archiving and export (in CSV format), the management of automated protocols for repeatable test cycles, and support for the industry-standard Modbus TCP protocol, enabling integration with external PLC/SCADA systems.
- Software type: Desktop software application for the control and supervision of AEM systems.
- Communication interface: Direct Ethernet connection via an RJ45 port (10/100BASE-T) with a dedicated static IP configuration (default address: 192.168.121.4; subnet mask: 255.255.255.0).
- Industrial integration: Supports Modbus TCP server (slave) functionality, enabling supervision and command execution from external PLC/SCADA systems (up to 5 simultaneous connections; 1-second data refresh rate; 32-bit IEEE-754 floating-point data format).
- Direct control functionality: Parametric management of Power Control (stack voltage and current) and Electrolyte Control (electrolyte temperature and flow rate).
- Data logging and export: Integrated continuous logging, with the ability to save and export operational data in .csv format, organized via a Project Manager.

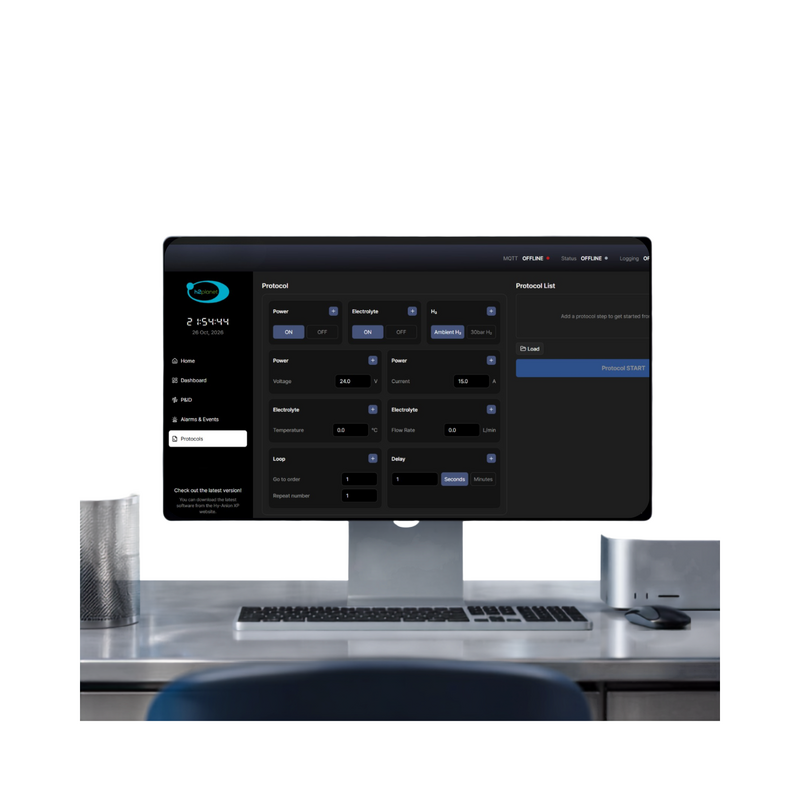

- Test cycle automation: "Protocols" module for executing automated sequences based on ordered steps (electrolyte control, power control, time delays, and repeating loops).
- Monitoring and diagnostics: Visualization of 32 measurement channels, real-time operational status, event history, and advanced alarm management categorized by severity level (Warnings, Fault stops, and Emergency stops—triggered via an Emergency STOP command).
