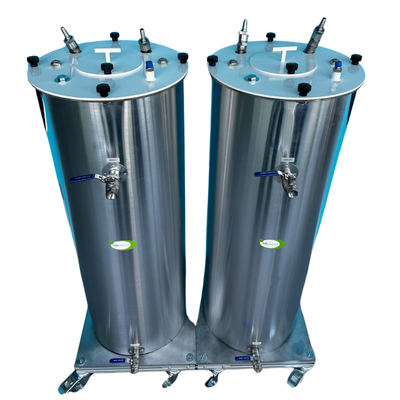

MyH2 Thermal PLUS2 is the stainless steel heat exchanger designed and manufactured for MyH2 ¿ 7000 by H2planet’s experience in the production and installation of metal hydride systems.

H2Planet heat exchangers for MyH2 metal hydrides have been developed for metal hydride cylinders as a water cooling medium or for hot water heating respectively to optimize the processes of recharging and gas release hydrogen.

They are suitable for integration with both air-cooled and water-cooled fuel-cell systems. With water-cooled stacks it is possible to maximize system efficiency with the recovery of heat on the secondary circuit of water-cooled fuel cell exchangers (water-water heat exchangers with tube or plate bundle).

The ideal system to get the most out of your MyH2 series metal hydrides. both in charge and in gas desorption.

The system is available in two configurations:

A. Stainless steel cylindrical heat exchanger only

B. Complete system of:

    external painted stainless steel cylindrical heat exchanger
    circulation pump
    3-way valve
    connections, fittings, hose holders, hoses, etc.
    temperature sensors
