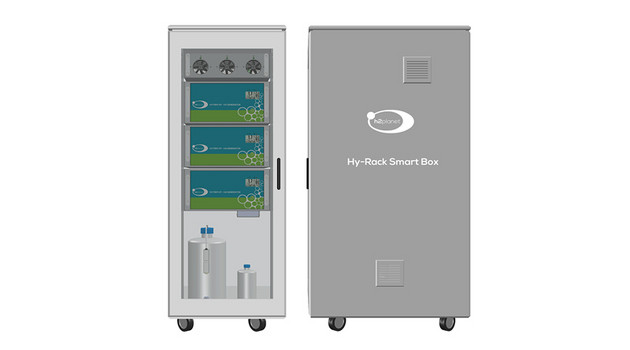

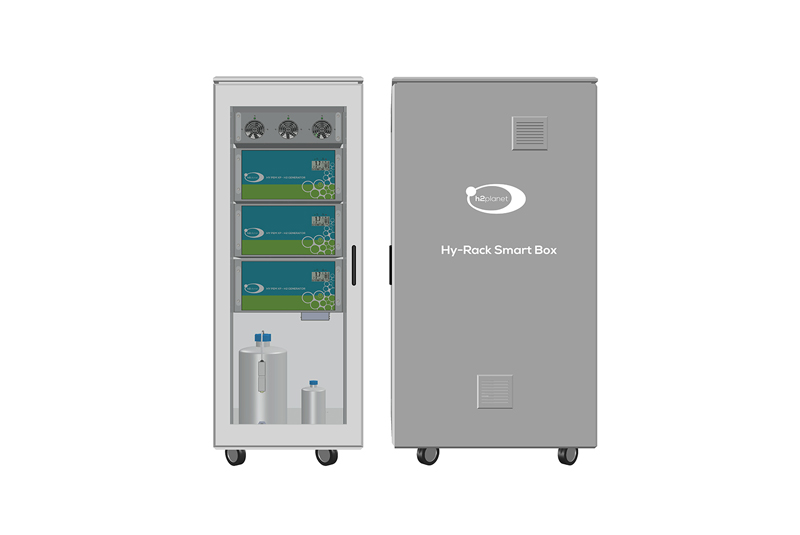

Hy-Rack Smart Box

Plug and play hydrogen production system

Up to 16 l/min. of hydrogen production!
For energy, industry, food and welding sector, for business and laboratory uses.

?The ultimate in reliability, ease of use.

??Modular hydrogen production system combined with different Hy-PEM XP Rack models.

Easy electrolysis

Easy electrolysis for your applications!

Ideal for:
- Energy storage
- Fuel-cell power
- Laboratories, research centers and companies

Hydrogen production up to 10l/min.
Hydrogen release pressure adjustable up to 16bar.

TECHNICAL SPECIFICATIONS

H2 production: 16,5 l/min. (1 m3/h) depending on the installed electrolysis
Absorbed power: 3600W (4kW) depending on the installed electrolysis
Power supply: 230V AC (mono-phase or three-phase)
Release pressure: 0-16 bar
H2 purity: 6,0 (99,9999%)

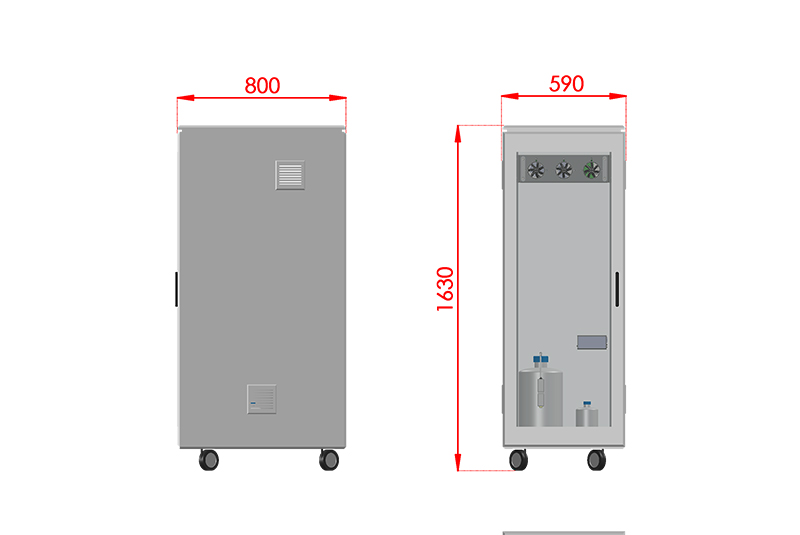

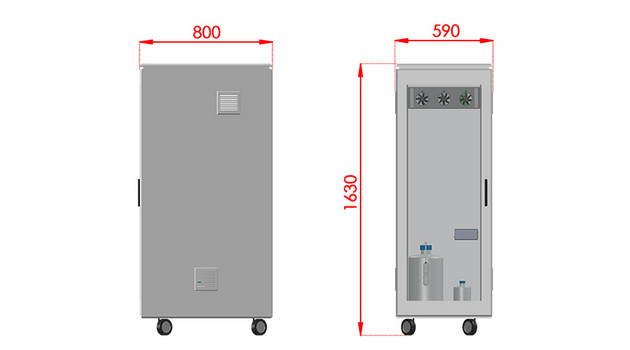

Dimensions:163x58x80 cm
Cabinet weight: 130 kg
Total weight: depending on the installed electrolysis

included and optional

INCLUDED
Hy-PEX XP Rack electrolysers according to the desired production capacity
10l tank for feeding water
5l tank for waste water
Electrical connections and gas connection
Cooling fan system controlled by a thermostat

OPTIONAL
Internet connection via LAN cable
Possibility to replace tanks with connection to a purified water source
Integrated fuel cell system
Integrated hydride storage system
